Bosch WFMC3200UC (Nexxt 300 Series) Dimensions, Clearances & Fit Guide

This guide provides all the key measurements for the WFMC3200UC washing machine. Review dimensions, clearance requirements, door swing, pedestal and stacking options, and installation notes to ensure a proper fit in your home.

Key Dimensions

Width	27 in
Height	36.9 in
Depth	31.6 in
Depth w/ Door Open 90°	46.7 in
Capacity	3.8 cu. ft.
Weight	216 lb
ADA Compliant	No
ENERGY STAR® Certified	Yes

Clearance Requirements

Front View Front-Load Clearance for Washer

Side View Front-Load Clearance for Washer

Front	0.25 in
Sides	0.25 in
Rear	2.5 in
Top	12 in

Proper clearance ensures safe operation, reduces vibration, and allows for adequate airflow. Always maintain the minimum space on all sides to prevent overheating and to make servicing easier.

Door Swing & Accessibility

Door Swing	Left-hinged (non-reversible)
Door Swing Maximum	180° (16-inch pull-away door)

Allow room for full door swing.
Meets ADA accessibility standards.

Pedestal & Stacking Compatibility

Pedestal Compatible	Yes
Models	WTZ1295

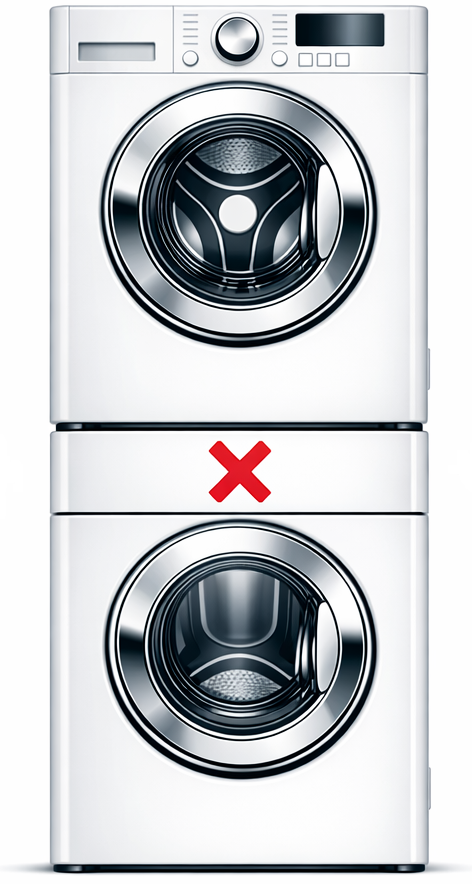

Stackable	No
Stacking Kit

Installation Notes

Flooring & Leveling

Solid, level surface
Concrete preferred
Level all four feet

Drain & Plumbing

Drain height: 24–39 in
Replace original hoses with modern stainless-steel hoses

Electrical

120V 60 Hz AC only
15 amp circuit
3-prong grounded outlet
Accessible plug required

Service Access

Water supply accessible
Drain connection accessible
Maintain rear access for water, drain, and electrical connections.

How the WFMC3200UC Fits Within Bosch’s Lineup

The Bosch WFMC3200UC is part of the Nexxt 300 Series, a full-size 27-inch washer lineup. It features an 18 lb (approx. 3.8 cu. ft.) capacity, 15 wash cycles, SENSOTRONIC Plus™ load sensing, an internal water heater, and a maximum spin speed of 1,000 RPM. It operates at just 60 dB(A), uses only 186 kWh/year, and includes a 180° door swing for easy loading. This model sits above the WFMC2201UC with upgraded Logixx™ controls and expanded cycle options.

FAQ About This Washer

The WFMC3200UC is a full-size 27-inch washer with an 18 lb (approx. 3.8 cu. ft.) capacity, not a compact 24-inch model.

No. This model is not designed to be stacked.

Yes. It is compatible with the WTZ1295 pedestal.

Sides: 1/4 inch, Top: 12 inches, Rear: 2.5 inches, Front: 1/4 inch. Ventilation openings of 48 sq. in. (top) and 24 sq. in. (bottom) are required.

No. The door is permanently left-hinged and cannot be reversed.

The 16-inch door opens to a full 180 degrees for easy loading and unloading.

Yes, provided the drain height is between 24 and 39 inches.

Yes. It consumes approximately 186 kWh/year and is CEE 3b tier rated.

The 3200UC includes Logixx™ controls, SENSOTRONIC Plus™ sensing, expanded cycle options (15 cycles vs. 11), and improved energy efficiency.

1,000 RPM.

Yes, but due to its weight (216 lbs) and 1,000 RPM spin speed, a solid floor surface and proper leveling are essential.

Yes. Many parts remain available due to shared components across the Nexxt series.
