Maytag MHW5630HW Dimensions, Clearances & Fit Guide

This guide provides all the key measurements for the MHW5630HW washing machine. Review dimensions, clearance requirements, door swing, pedestal and stacking options, and installation notes to ensure a proper fit in your home.

Key Dimensions

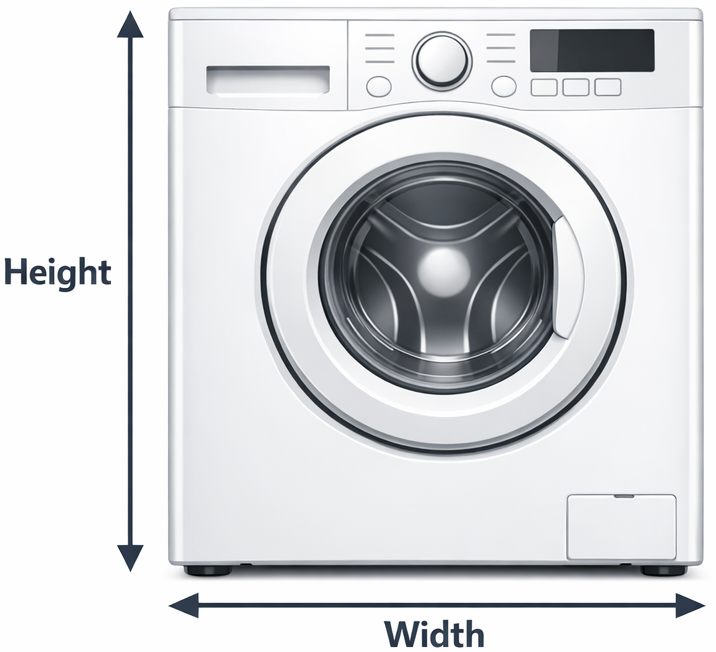

Width	27 in
Height	38.625 in

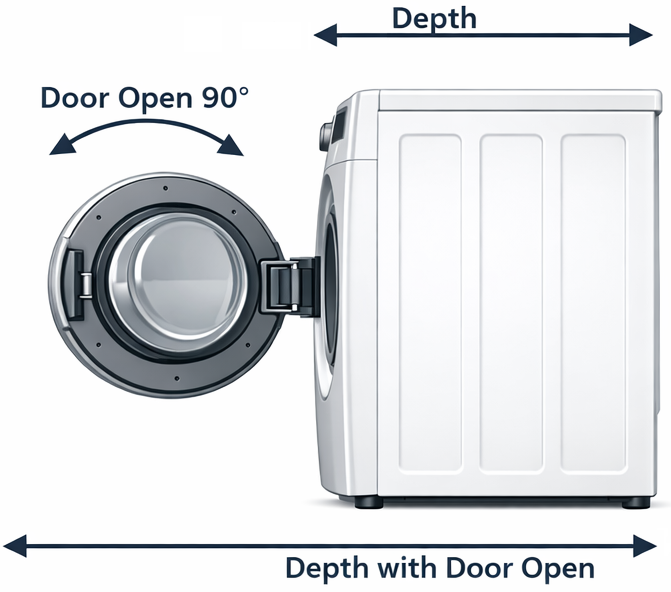

Depth	31.3125 in
Depth w/ Door Open 90°	51.3125 in
Capacity	4.5 cu. ft.
Weight	210 lb
ADA Compliant	Yes
ENERGY STAR® Certified	Yes

Clearance Requirements

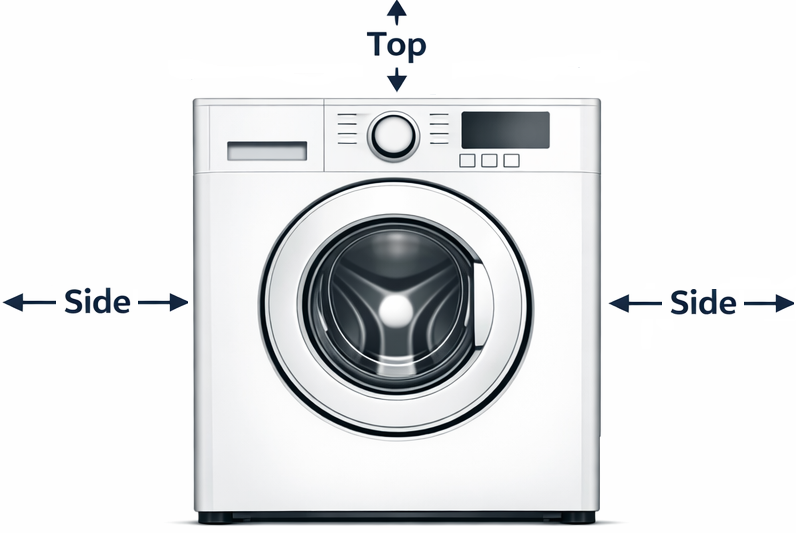

Front View Front-Load Clearance for Washer

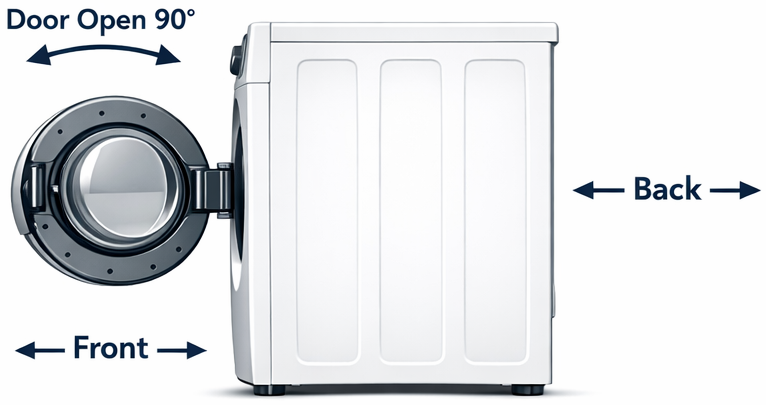

Side View Front-Load Clearance for Washer

Front	21 in
Sides	1 in
Rear	5 in
Top	1 in

Proper clearance ensures safe operation, reduces vibration, and allows for adequate airflow. Always maintain the minimum space on all sides to prevent overheating and to make servicing easier.

Door Swing & Accessibility

Door Swing	Left-hinged (non-reversible)
Door Swing Maximum	150°

Allow room for full door swing.
Meets ADA accessibility standards.

Pedestal & Stacking Compatibility

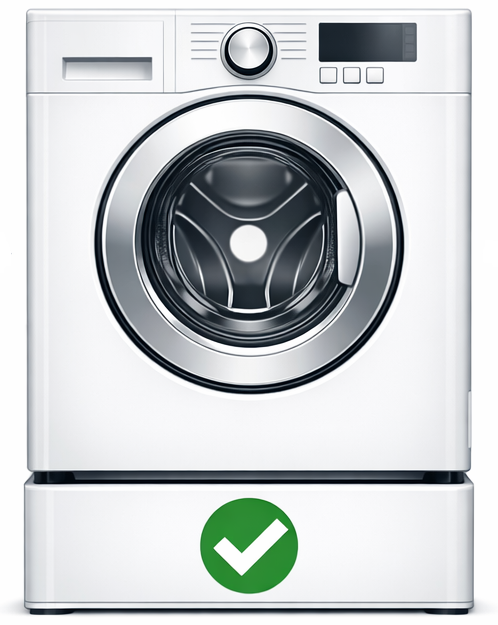

Pedestal Compatible	Yes
Models	XHPC155XW XHP1000XW

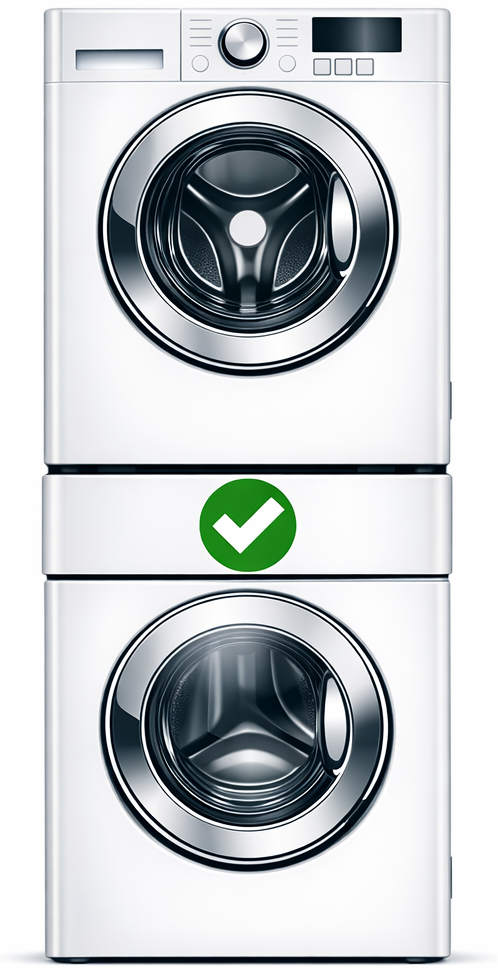

Stackable	Yes
Stacking Kit	W10869845

Installation Notes

Flooring & Leveling

Solid, level surface
Concrete preferred
Level all four feet

Drain & Plumbing

Drain height: 39–96 in
High-quality inlet hoses recommended

Electrical

120V 60 Hz AC only
15 or 20 amp circuit
3-prong grounded outlet
Dedicated circuit recommended
Accessible plug required

Service Access

Water supply accessible
Drain connection accessible
Ensure rear access for water, drain, and electrical

How the MHW5630HW Fits Within Maytag’s Lineup

The Maytag MHW5630HW occupies one of the most strategically important positions in Maytag’s modern front‑load washer lineup: the mid‑range “workhorse” tier. It’s engineered to deliver the brand’s signature durability and cleaning performance without the premium price tag or advanced smart‑home features found in Maytag’s upper‑tier models. For homeowners who want Maytag reliability, a 4.5 cu. ft. capacity, and essential stain‑fighting features, the MHW5630HW consistently stands out as the value‑sweet‑spot in the catalog.

FAQ About This Washer

Yes. The washer is exactly 27 in wide, but you should allow 1 in of clearance on each side.

The door‑open depth is 51.3in, so measure from the back wall to any obstruction.

Yes, with a Maytag‑approved stacking kit.

Yes, if you maintain clearances and provide ventilation.

Yes — compatible with XHPC155XW and XHP1000XW.

No. It is permanently left‑hinged.

Yes.
